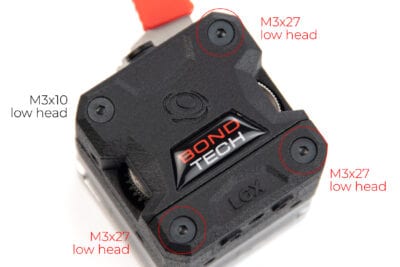

Extend the possibilities of your LGX™ with this mounting hardware set. Mount a plate in between the extruder and the stepper motor with the longer screws; Extend the mounting possibilities with the motor studs (up to 4 additional mounting points); Improve the Direct Drive performance with the PTFE tube (Sized for Copperhead). M3x30 Low Head Screws recommendations: Replace the M3x27mm screws on the 3 positions highlighted in the picture. The M3x30 screws are compatible with mounting plates from 1 and up to 3mm thickness. If mounting plate is 1mm thick, or thinner, use the default screws M3x27. PTFE tube lengths: Copperhead screw mount : 30mm New Mosquito and Mosquito Magnum : 11 mm Old Mosquito and Mosquito Magnum : 10 mm PTFE cut recommendations: PTFE tube should be cut straight on both ends. Slight chamfer inside is recommended, but not mandatory.
