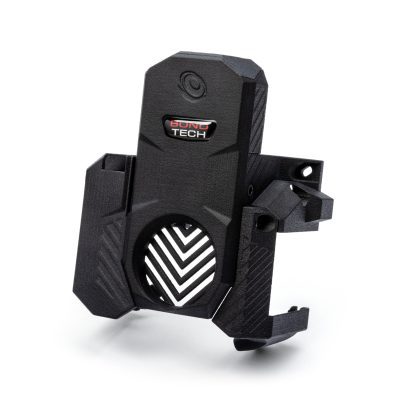

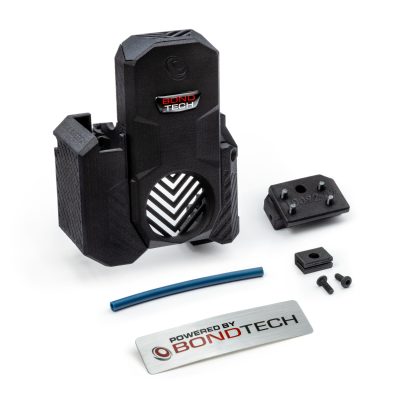

LGX Lite Arrow for Creality Advantages It converts the compatible printers from Bowden to direct extruder. Extra load on strain gauge is limited to the LGX Lite itself. Housing is light and insulated from the Extruder to allow for strain gauge levelling. It is compatible with all stock hotends and cooling fans. Housing is easy to remove for maintenance and service of the hotend and extruder. Z-position of the fan shroud may be adjusted. LGX Lite Arrow for Creality Features Weight: 65g (mounting hardware) / 143g (extruder with motor) E-steps : 562 @ 16 microsteps. Klipper’s rotation_distance : 5.7. Stepper motor current : 0.45 to 0.65A max. Max operating temperature : 90°C. It may be upgraded with Slice Engineering hotends: Copperhead Screw Mount; Mosquito; Mosquito Magnum; LGX Lite Arrow for Creality Includes 1X LGX Lite V2 eXtruder with motor 1x LGX Lite eXtruder mounting set 1x PA12 extruder mount 1x PA12 hotend mount 4x M3x6 button head screw 2x M3x10 button head screw 2x M3x8 button head screw 1x M3x30 screw 1x M3 square nut 1x Capricorn cutting fixture 1x 70mm Capricorn tube 1x LGX Lite Arrow housing set 1x PA12 front housing 1x PA12 left wing 1x PA12 right wing 1x PA12 top lid 1x PA12 fan shroud 1x PA12 (breakout board/cables) cover 2x M3x8 button head screw 1x M3x16 screw 2x M3x20 MC6S screw 3x M3 square nut 1x Powered by Bondtech sticker
