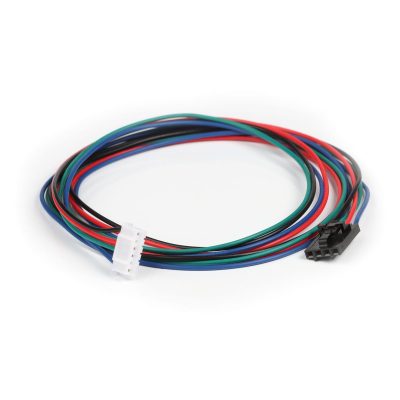

Controller side Motor side PIN 1 —————– PIN 1 PIN 2 —————– PIN 4 PIN 3 —————– PIN 3 PIN 4 —————– PIN 6 If it is going to be used with our 25 mm Pancake motor then swap position of the two center wires in order to have a correct connection like below. Controller side Motor side PIN 1 —————– PIN 1 PIN 2 —————– PIN 3 PIN 3 —————– PIN 4 PIN 4 —————– PIN 6
